Product : Valve Box

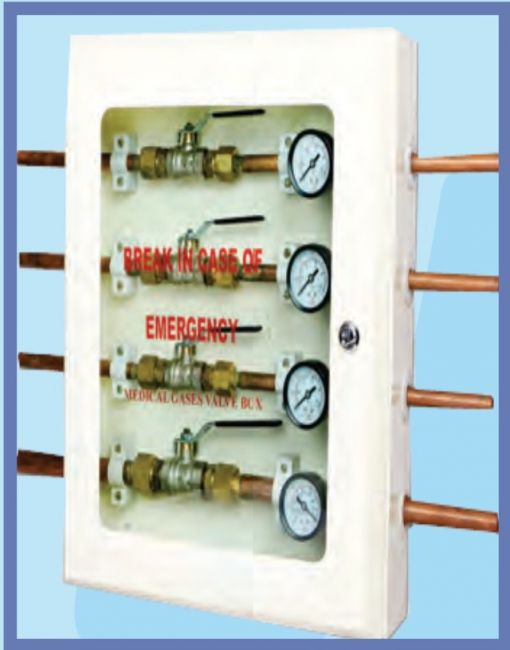

Area Valve Box MS

Item Code:-HSS3012

We are one of the renowned names of the industry engaged in offering Area Valve Box to the clients. These boxes are used to supervise and shut individual as well as parts of central systems in hospitals and laboratories. Moreover, these products allow the ward staff to isolate the area for maintenance and other repairing works.


Some of the other details are as follows:


  • Adapter has opening by quarter turn of handle
  • Valve is precisely tested for twice the working pressure
  • Degreased for medical gas service
  • Pressure monitoring distribution system is done through pressure gauges
  • Door can be opened by braking glass or unlocking using the key


Configurations of valve boxes are described as below:


  • 5 services- 02, N20, air-4, air-7, vacuum (15,15,15,15,22 mm)
  • 4 services- 02, N20, air, vacuum (15, 15, 15. 22 mm)
  • 3 services- 02, air, vacuum (15, 15, 22 mm)
  • 2 services- 02, vacuum (15, 22 mm)




  • Valve box made using M.S.
  • Duly powder coated with pressure gauges and isolation valves
  • Valves are non-lubricated 90 degree turn lever stainless steel half valves with PTFE seat
  • Ideal for the size of copper pipe with brass and screw threaded end
